The zebra crossing in non light controlled areas lacks red and green signal lights to control traffic, and there is a large flow of people and vehicles. Traditional transportation equipment lacks warning functions and has poor warning effects. Drivers cannot predict that pedestrians will pass through zebra crossings ahead. In addition, pedestrians lack awareness of zebra crossing safety, which can easily lead to accidents on zebra crossing sections. Traffic accidents occurring at intersections without traffic control facilities account for 33.83% of all traffic accidents in the country, and the death toll accounts for 32.49% of the annual traffic accident death toll. On average, one pedestrian is injured by a car every seven minutes, and one pedestrian is killed in a car accident every two hours or so. The intelligent pedestrian walkway system in non light controlled areas monitors pedestrians passing or about to pass zebra crossings to activate the warning system. After the system is started, the warning devices (road stud beads and illuminated signs) facing the driver's end begin to flash, warning that there are pedestrians still crossing or about to cross in front of the driver's end. Please slow down and give way. At the same time, the road stud light board facing the pedestrian end begins to flash, and a voice alarm sounds, warning pedestrians that you are crossing or about to cross a zebra crossing. Please proceed with caution. Simultaneous warning on both ends to protect the safety of drivers.

Solution Overview

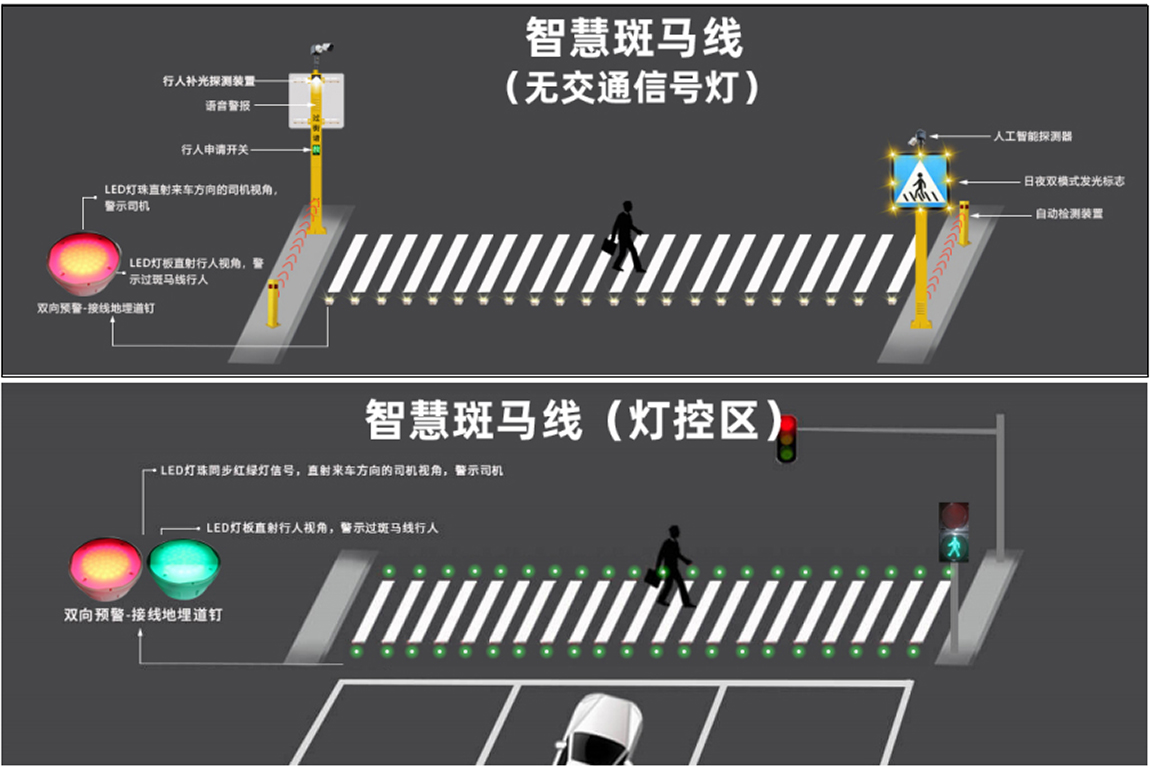

Smart zebra crossing (without traffic signals)

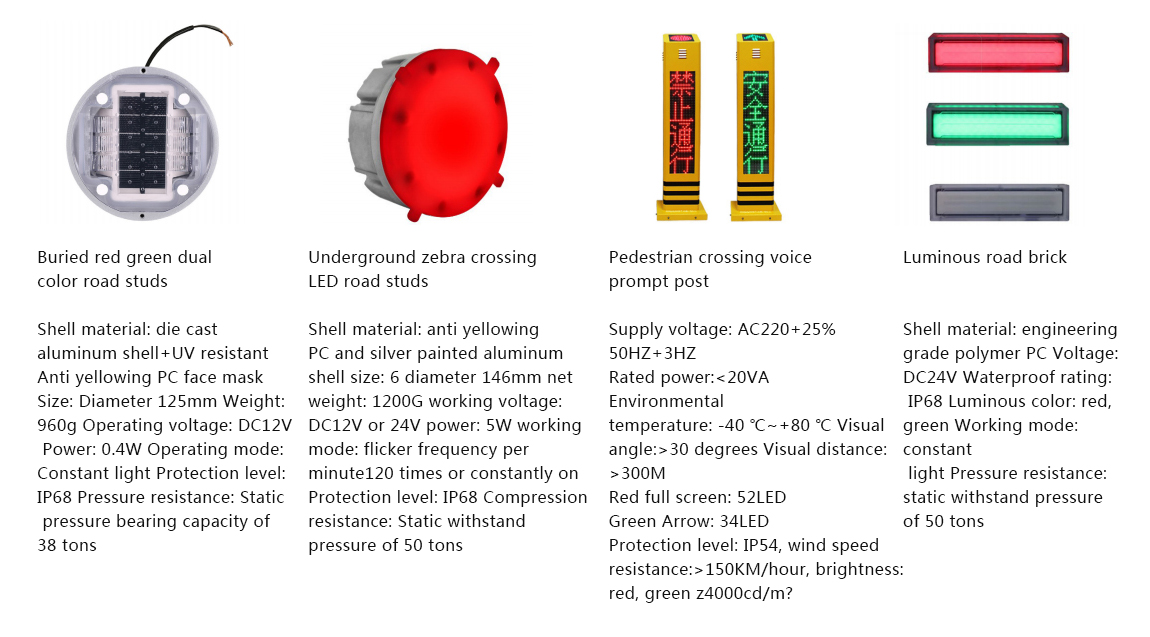

Fully monitor pedestrians passing or about to pass through zebra crossings to activate the warning system. After the system is started, the warning devices facing the driver's end: road stud lights and illuminated signs start flashing, warning the driver that there are pedestrians passing or about to pass in front of them, please slow down and give way; At the same time, the road stud light board facing the pedestrian end begins to flash, and a voice alarm sounds to warn pedestrians that they are passing or about to pass through the zebra crossing, please proceed with caution. Simultaneous warning on both ends to ensure the safety of drivers.
Smart zebra crossings (light controlled areas) are equipped with road studs on both sides of the zebra crossing section in front of the vehicle stop line, which synchronize with pedestrian signals. When the traffic light is green, the road stud beads facing the driver turn green synchronously to indicate that the driver can pass normally; When the traffic light turns yellow or red, the road stud beads facing the driver synchronously turn red, warning the driver that they are about to approach the pedestrian traffic area, slow down and wait in advance. At the same time, the road stud light board facing pedestrians flashes, reminding pedestrians to be careful when crossing the zebra crossing.

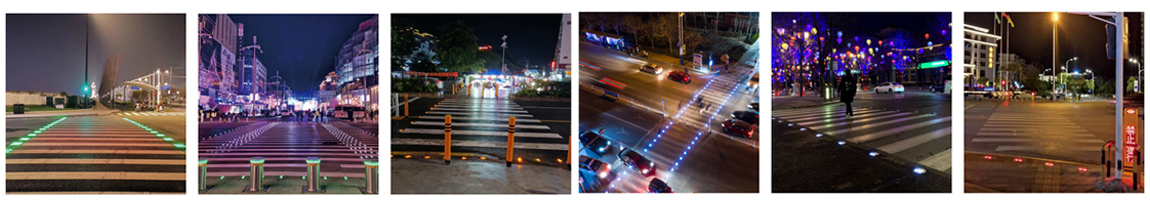

This set of ground mounted "traffic lights" clearly outline the zebra crossing area and indicate the stop zone for vehicles, which can reduce the speed of vehicles approaching pedestrians, extend the braking distance between vehicles and pedestrians, increase the yield to pedestrians, and reduce conflicts between pedestrians and vehicles.
