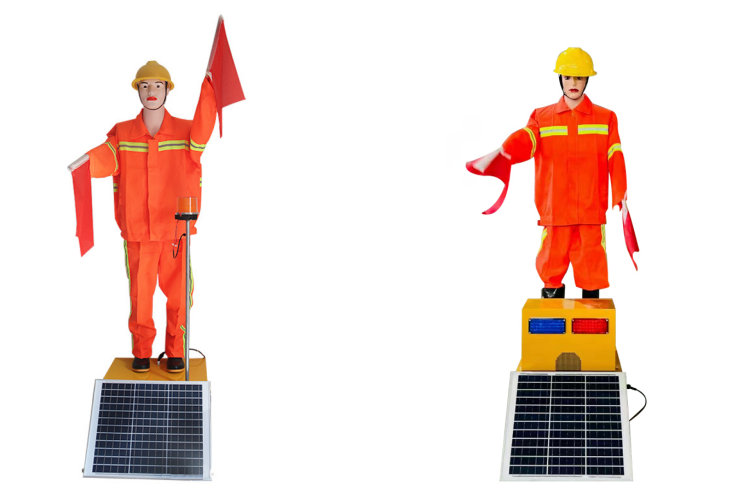

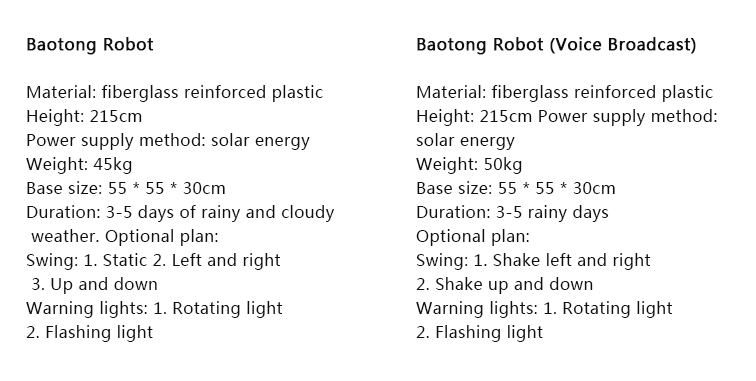

Baotong Robot

The solar powered communication robot includes a base and a plastic body. The plastic body is equipped with a driving structure, which includes a bracket, a driving motor, a cam, a slider, a pair of connecting rods, a pair of mounting blocks, and a pair of rotating rods; The bottom of a pair of connecting rods is connected to the top of the slider, and the top is rotatably connected to a pair of mounting blocks, which are fixed to a pair of rotating rods; A pair of rotating rods are respectively connected to the bracket for rotation, and two arms are respectively connected to the outer ends of the pair of rotating rods. The driving motor is installed on the bracket, and the bracket is equipped with a vertical slide rail. The cam is located below the slide rail and cooperates with it; The driving motor rotates the cam, which drives the slider to intermittently move up and down along the vertical slide rail of the bracket, thereby driving the rotating rod to rotate through the connecting rod, ultimately causing the arm to swing the colorful flag. Mostly used for commanding and warning on construction road sections.
